Barcode Scanners

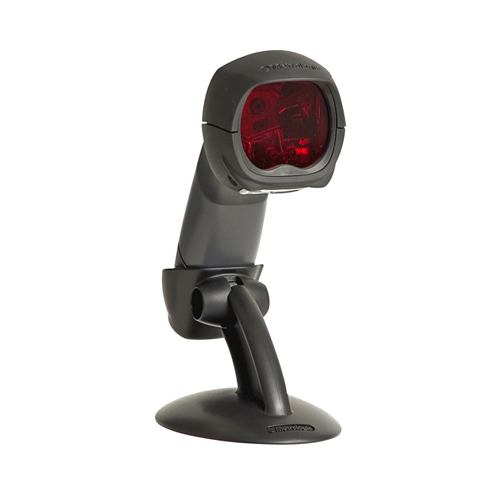

Fusion 3780
The Fusion 3780 laser barcode scanner is ideal for medium-volume retailers. It combines omnidirectional and single-line laser scanning into a lightweight, ergonomic handheld device that’s also affordable. And the scanner's automatic stand detection lets you seamlessly switch from handheld to hands-free presentation scanning on the fly.
Overview
- Primary Omnidirectional Scan Pattern
- Secondary Single-Line Scan Pattern
- Automatic Stand Detection
- Sleep Mode With IR Wake-Up
- Optional Integration of RF EAS Antenna
Specifications
Electrical
5 VDC ± 0.25 V
1.4 W (275 mA @ 5 V)
1.0 W (200 mA @ 5 V)
USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
Mechanical
189 mm x 65 mm x 73 mm (7.4 in x 2.6 in x 2.9 in)
195 g (6.9 oz)
User Guides and Manuals
Name | Date | Size |
---|---|---|
Fusion 3780 | 26/01/2019 | PDF 1.19 MB |
