Portable Barcode Scanners
GS M500BT

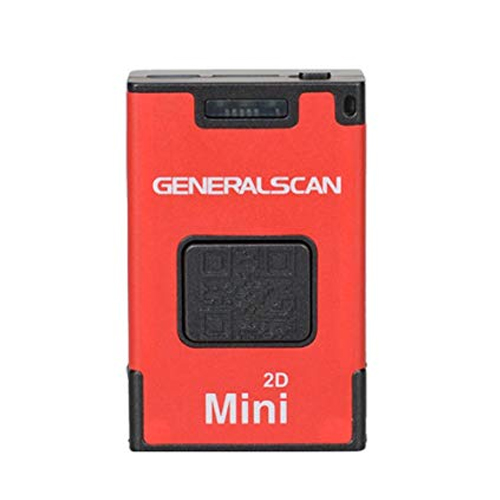

GS M500BT 2D Bluetooth companion scanner is mini size and powerful new generation barcode scanner. It can be combined with smartphone to be a professional data collection terminal. It features advanced CMOS imager scan engines which can rapidly decode 1D and 2D barcode into your smartphone via Bluetooth, such as iPhone, iPad, and all kinds of android smartphone. With GS M500BT Bluetooth companion scanner, you do not need to buy the expensive and heavy PDA anymore! It has dual field optics, both high density and wide field in the same unit.
Overview
- Patented Dual Field Optics ,Both High Density and wide field in the same unit
- 8 hours scanning with 10 second interval trigger
- Smartphone screen barcode rediblity
- Low power comsuption bluetooth 3.0 technology, support HID and SPP protocol
- Bulid-in memory and Offline save mode, can save 10000 pcs barcode in the scanner
- Ultrafast hardware decode ablility
Specifications
Characteristics
L59.9mm×W37.6mm×H13.9mm
50g
DC5 V±0.15V
750mAh
Specifications
CMOS 120 Mega Pixels (1280X960)
30 times/s
±60°，±60°，±180° (Pitch,Skew,Rotation)
Max 96800 Lux
Downloads
| Name | Date | Size |
|---|---|---|
| GS M500BT Spec Sheet | 28/01/2019 | PDF 783 KB |
